| Motor Model | Number of Phase | Number of Poles | Rated Voltage (VDC) |
Rated Speed (Rpm) | Rated Torque (N.m) | Rated Power (W) | Rated Current (A) | Peak Current (A) | Peak Torque (N.M) | Rotor Inertia (kg.cm2) | Torque Constant (N.m/A) | Torque Constant (V/krpm) | Line-Line Resistance (Ω) | Line-Line Inductance (mH) | Length (mm) | Weight (kg) | Encoder Resolution (P/R) |

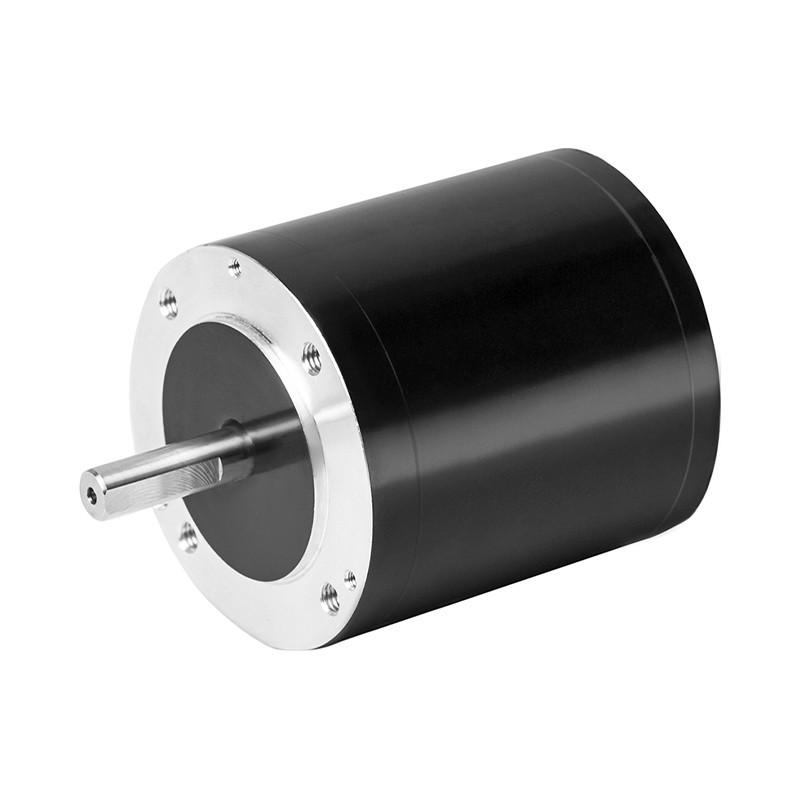

| 52SDTT 481030 |
3 | 10 | 48 | 3000 | 0.32 | 100 | 2.97 | 3.6 | 0.96 | 0.059 | 0.107 | 11.2 | 2.5 | 1.6 | 56 | 0.93 | 1000, 1024, 2500/17bit, 23bit |
*Note: We can manufacture products according to customer's requirements.
